Servo feeding system
Feed screw adopts servo control system to prevent crushing materials and deliver higher reliability.
Servo mold plate drive system
With high repeated positioning accuracy, servo operated mold plate drive system ensures high reliability at a
fresh of 100 strokes/min. The food forming machine is equipped with fewer wearing parts to reduce your usage
and maintenance cost.

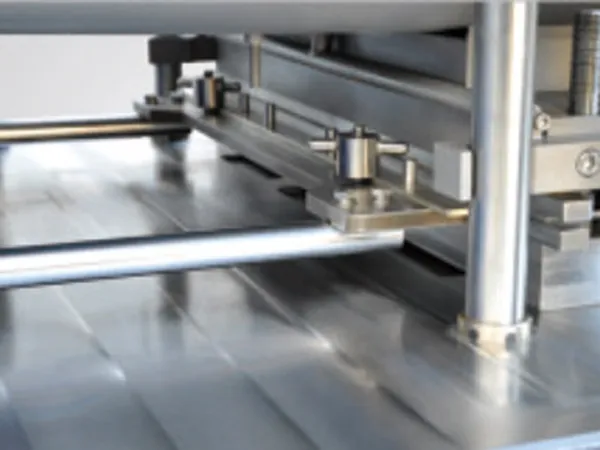

Stainless forming platform
The forming platform is made by stainless steel plate. With high precision of processing and positioning, the
forming platform ensures the stable and high-speed running of mold plate system.

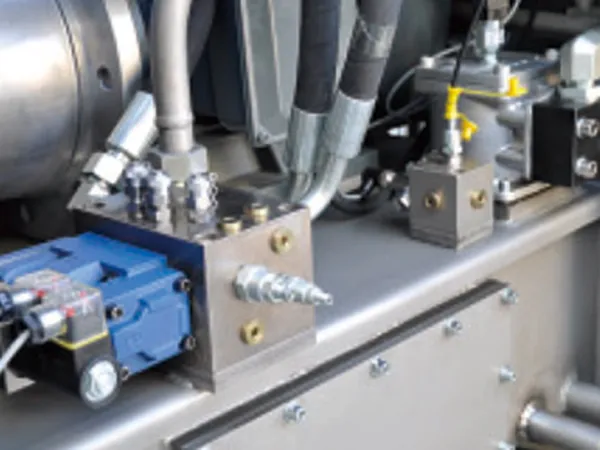

Hydraulic fast filling system
Imported hydraulic filling system and high-precision filling cavity can rapidly fill the mold plates with no
material leakage.
Touchscreen control
The touchscreen control system features new operation interface, multiple languages input, easy parameter
setting, auto data storage, auto fault diagnosis, EtherCAT bus control and high-speed data communication.
Good compatibility with metal mold plates
Metal mold plates have excellent wear resistance, long service life and less material leakage. The food
forming equipment is able to process a wide range of products including meat, fish, potatoes and vegetables as
well as bakery.
High productivity and operationality
Fuzzy design software can automatically match the forming speed with conveyor output speed, ensuring the
consistency of products in whether small or high volume food forming process.
Model | |
Belt width | 600mm |
Air/water pressure | 6Bar/2Bar |
Power | 28.12kW |
Production capacity | 800-1600kg/h |
Speed | 50-100 strokes/min |
Product thickness | 6-40mm |
Product weight error | ≤1% |
Max. diameter of product | 150mm (for burger) |
Filling pressure | 3-15Mpa adjustable |
Overall dimension | 3170x1176x2430mm |
